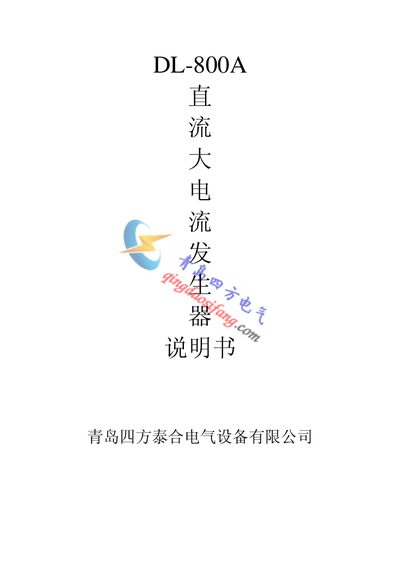

DL-800A DC large current generator manual. The product has the characteristics of large output power, small additional loss, strong overload capacity, easy operation, clear reading, and flexible movement. It is suitable for power system technicians to test DC current transducers, DC auxiliary magnetics of reactors, protection devices and secondary circuit current tests.
The DL-800A is a direct‑current large‑current generator designed for high‑power applications, featuring a maximum output of 800 A, low power consumption, strong overload capability, and easy operation. It is supplied with a digital timer and measurement functions to ensure precise control.
This manual includes the main technical specifications, a list of accessories, safety and operating guidelines, and warranty conditions. It also provides contact information for Qingdao Sifang Taihe Electrical Equipment Co., Ltd. for service and support. This manual is written in Chinese.
| Power Supply | AC 220 V ±10 % 50 Hz |
|---|---|
| Rated Output Current | 800 A (customizable) |
| Accuracy | 0.5 |
| Measurement Range | 0‑99.999 s, resolution 1 ms |
| Maximum Overload Duration | < 30 s |
| Weight | 32 kg |
The generator can deliver up to 800 A, and the current can be customized.
It can sustain an overload for less than 30 seconds.
The product is covered by a free one‑year warranty; after that, repair costs are the customer's responsibility.
