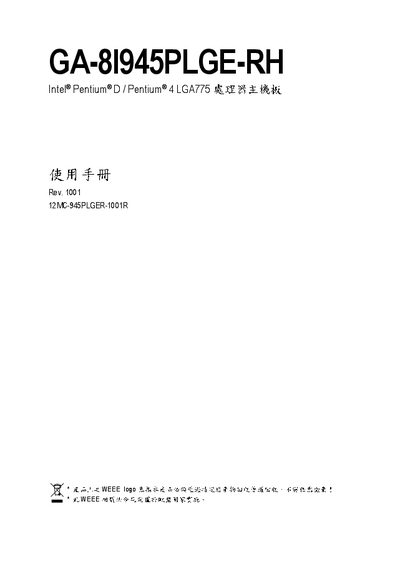

This document is about the GA-8I945PLGE-RH motherboard. The motherboard supports Intel® Pentium® D / Pentium® 4 LGA775 processors and has multiple BIOS settings options and features. The motherboard also has multiple interfaces and slots, including a PCI Express x16 slot and SATA interfaces.
This manual covers safety and regulatory information for the GA-8I945PLGE-RH motherboard, including CE marking, FCC compliance, and handling precautions. It also lists the supported CPUs, memory types, and connector layouts.
The BIOS setup section describes how to navigate the BIOS, adjust power management, configure integrated peripherals, and reset to default settings. Additional chapters detail rear panel connectors, SATA and USB ports, and troubleshooting tips.
| Supported CPUs | Intel Pentium D / Pentium 4 (LGA775) |
|---|---|
| Memory Type | DDRII 533/400 MHz DIMM |
| SATA Interface | SATA 3 Gb/s |
| USB Ports | 2 × USB 2.0 (F_USB1, F_USB2) |
| Graphics Output | VGA connector |
| Power Connector | ATX 12 V |
| BIOS Version | 0.85 |
The model number is GA-8I945PLGE‑RH.
It supports Intel Pentium D and Pentium 4 processors for the LGA775 socket.
In the BIOS menu select “Load Fail‑Safe Defaults” or “Load Optimized Defaults” and then save and exit.
The board carries CE marking and complies with FCC Part 15 Class B requirements.
