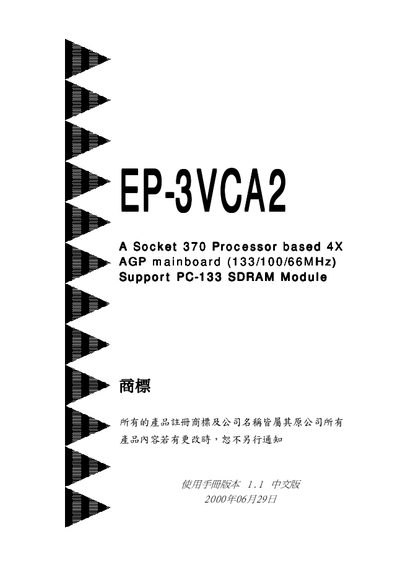

This manual introduces the basic functions and features of the EP-3V CA2 motherboard and provides guidance and information required to install, configure, and use the motherboard.
The EP-3VCA2 is a Socket 370 processor‑based ATX motherboard featuring a 4‑X AGP slot, PCI bridge, and support for PC‑133 SDRAM. The document covers the board’s layout, connector descriptions, and system operation principles.
Key sections include safety precautions for handling the board, step‑by‑step installation guidance, BIOS setup instructions, and troubleshooting information such as POST codes and error handling. Appendices provide BIOS default values, connector pinouts, and a brief guide for installing Ghost 5.1. This manual is written in Chinese.
| CPU Socket | Socket 370 |
|---|---|
| AGP Slot | VT82C694X |
| Memory Support | PC‑133 SDRAM |
| Form Factor | ATX |
| Power Connector | 20‑pin ATX |
| USB Ports | USB 0.1 / USB 2.0 |
| Video Chipset | VT82C686A |
| Audio/Video Interfaces | Integrated audio/video controller |
It supplies the main power to the board and enables the “remote power‑on” feature.
The board uses the VT82C686A video chipset.
