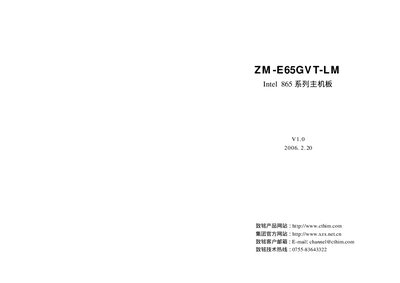

This is the user manual of ZM-E65GVT-LM mainboard of CTHIM Technology Co., Ltd., which details the features and characteristics of the product, including safety guidance, product list, installation instructions and more.
This manual introduces the ZM-E65GVT-LM motherboard, based on the Intel 865GV+FV82801EB chipset, and details its features such as LGA775 CPU support, dual‑channel DDR memory, integrated graphics, audio, and networking.
It includes step‑by‑step hardware installation, BIOS configuration, driver installation, troubleshooting, and a glossary of technical terms, helping users set up and maintain the board safely. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Front‑side bus speeds | 800 MHz / 533 MHz / 400 MHz |
| Maximum memory capacity | 2.0 GB |
| Northbridge chipset | Intel 865GV |
| Southbridge chipset | FV82801EB (ICH5) |
| Integrated graphics | Intel Extreme Graphics 2 |
| Network controller | RTL8100C, 10/100 Mbps |
| USB ports | 6 USB 2.0 ports (4 onboard, 2 via extension) |
| Board dimensions | 250 mm × 210 mm |
It uses an LGA775 socket.
The board provides six USB 2.0 ports – four are built‑in and two require a cable extension.
The motherboard can support up to 2.0 GB of DDR memory.
