Foxconn A7GMX/A7VMX Motherboard User Manual

A7GMX/A7VMX Series motherboard user manual. This manual contains information on how to use the motherboard, precautions, etc.

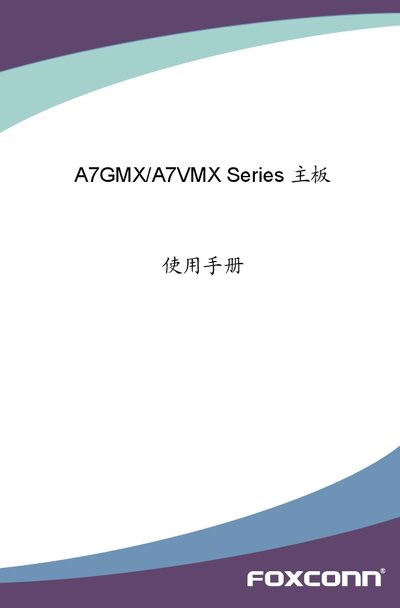

Foxconn A7GMX/A7VMX Motherboard User Manual - cover page
Brand
A7GMX/A7VMX
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
103
File format
PDF
File size
6.5 MB
Published
05 April, 2012
Updated
30 September, 2023
MD5 checksum
CE99269AA06DF45D30EBAA784033AA20
PDF
Foxconn A7GMX/A7VMX Motherboard User Manual PDF

About this manual

This manual provides safety instructions, handling precautions and warranty information for the Foxconn A7GMX/A7VMX series motherboards. It explains how to prepare the system, use anti‑static protection, and connect power and peripheral cables safely.

The document also details BIOS navigation, optical‑disc driver installation, online firmware upgrades, RAID configuration steps, and where to find compatibility lists and technical support on Foxconn’s website. This manual is written in Chinese.

What's inside

  • Declaration of Conformity
  • Safety Warnings
  • BIOS Settings
  • Optical Disc Introduction
  • Online Upgrade
  • RAID Configuration
  • Compatibility List
  • Motherboard Layout
  • Specifications

Specifications

Input current limit<= 16A per phase
FCC classificationClass B Subassembly
Model variantsA7GMX‑S, A7GMX‑K, A7VMX‑S, A7VMX‑K

Frequently asked questions

What safety steps should be taken before installing the CPU or memory?

Disconnect the power and use an anti‑static wrist strap before handling the CPU, memory, expansion cards or other components.

Which power connector is recommended for a high‑end graphics card?

Use a 24‑pin power connector when installing a high‑end graphics card in the PCI Express X16 slot for best performance.

Where can I find the CPU, graphics and memory compatibility list?

Visit the Foxconn website at the provided URL for the compatibility list.
