This manual introduces the features and usage of EP-3V series motherboards.

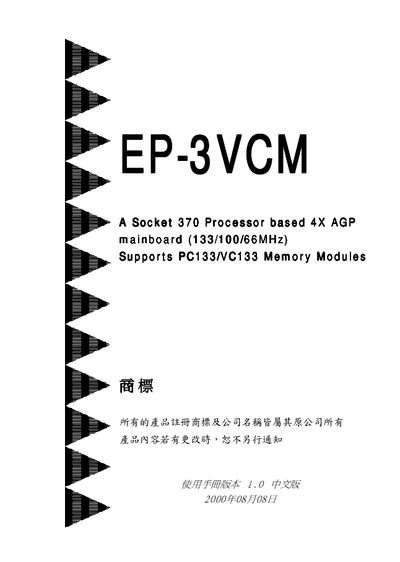

This manual describes the EP-3VCM motherboard, a Socket 370 based board with a 4X AGP slot and Micro‑ATX form factor. It lists the packaging contents, connector layouts, and hardware components such as the CPU socket, power connectors, and peripheral ports.
The document also covers BIOS configuration, power‑on procedures, safety precautions against static discharge, and detailed instructions for using the Ghost cloning utility to copy or restore disk images. This manual is written in Chinese.
| CPU Socket | Socket 370 |
|---|---|
| Supported CPU Speed | 1337100/66 MHz |
| Form Factor | Micro‑ATX |
| AGP Slot | VT82C694X |
| Power Connector | 20‑pin ATX |
| USB Ports | USB 0.1, USB 2.3 |
| IDE Interface | ATA‑66 |
| PS/2 Ports | Keyboard and Mouse |
| LPT Port | Parallel port |
Work on an antistatic surface, wear a grounding strap, and avoid unnecessary contact with the board’s components.
Soft Off allows the system to be turned off via the front‑panel power switch or by the operating system’s shutdown command.
Run ghost.exe with the appropriate –clone options, specifying source and destination partitions, and confirm any prompts for password protection.
It uses a 20‑pin ATX power connector for the power supply.
