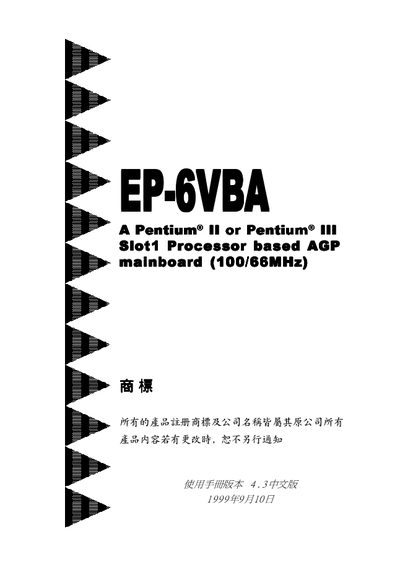

EP-6VBA User Manual

About this manual

This manual covers important safety precautions for handling the EP-6VBA motherboard, emphasizing antistatic measures and proper handling to avoid damage. It also details the board’s features, such as support for Pentium II/III processors, an AGP graphics interface, and various configuration settings.

Installation instructions describe component placement, CPU installation on the Slot 1 connector, and connection of peripheral devices. Appendices include BIOS settings, power management options, and troubleshooting information. This manual is written in Chinese.

What's inside

• User Safety Precautions
• Introduction
• Features
• Installation
• Standard CMOS Settings
• BIOS Function Settings
• Power Management Settings
• Appendix

Specifications

Frequently asked questions

What safety measures should be taken when handling the EP-6VBA motherboard?

Handle the board on an antistatic surface, avoid static discharge, and follow the installation instructions to prevent damage.

Which processors are compatible with the EP-6VBA board?

The board supports Pentium II and Pentium III processors.

How is the graphics interface implemented on this motherboard?

It provides an Accelerated Graphics Port (AGP) for high‑performance 3D graphics.

What type of CPU socket does the EP-6VBA use?

The board uses a Slot 1 connector for the CPU.
