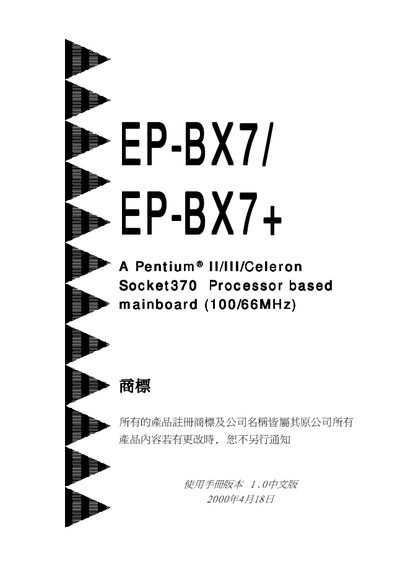

EP BX7 / BX7+ User Manual

This document introduces the EP-BX7 series motherboard, which is compatible with Pentium II/III/Celeron processors and uses the Socket370 interface. It supports a bus speed of 100/66MHz.

Brand: EP
Category: Board
Document type: User Manual
Language: Chinese
Pages: 68
File format: PDF
File size: 8.7 MB
Published: 05 April, 2012
Updated: 29 September, 2023
MD5 checksum: 753ACD466659C660564909058222BE15
PDF: EP BX7 / BX7+ User Manual PDF

About this manual

This manual covers the EP BX7 and BX7+ ATX‑form factor motherboards built for Pentium II/III and Celeron Socket 370 processors. It includes safety guidelines, component descriptions, and handling precautions to prevent static damage.

Detailed sections describe the board layout, power‑on features, BIOS configuration, peripheral connectors (USB, PS/2, PCI, ISA, AGP), and troubleshooting information such as POST codes and error handling. This manual is written in Chinese.

What's inside

Introduction
Features
Installation
BIOS Settings
Connector Overview
POST Codes
Appendix A
Appendix B
Appendix C
Appendix D

Specifications

Form factor	ATX
CPU socket	Socket 370
Supported CPUs	Pentium II/III/Celeron
Power connector	20‑pin ATX
USB ports	2 (COM1, COM2)

Frequently asked questions

What safety precautions should be taken when handling the EP BX7/BX7+ motherboard?

Work on an anti‑static surface, avoid static discharge, and do not connect or disconnect components unnecessarily.

How can the system be powered on remotely?

The board includes a 20‑pin ATX power connector that supports remote power‑on functionality.
