EP EP-3VBA+ Motherboard User Manual

This is a user manual for EP-3VBA+ mainboard

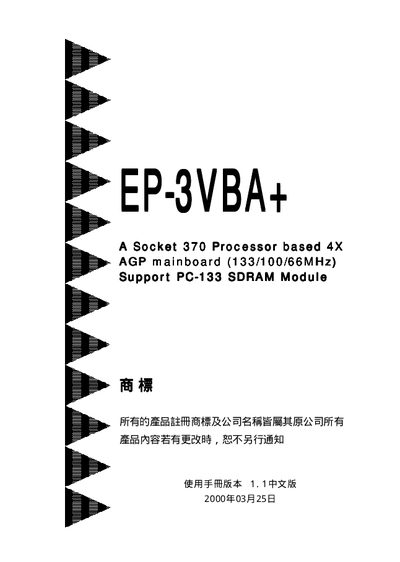

EP EP-3VBA+ Motherboard User Manual - cover page
Brand
EP-3VBA+
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
63
File format
PDF
File size
1.3 MB
Published
05 April, 2012
Updated
01 October, 2023
MD5 checksum
A11D293325BE7349A780EFA0546C503F
PDF
EP EP-3VBA+ Motherboard User Manual PDF

About this manual

This manual covers the EP-3VBA+ ATX motherboard, detailing its Socket 370 processor support, AGP slot, PC‑133 SDRAM compatibility, and built‑in I/O connectors. It includes safety precautions for handling the board, such as static‑discharge protection and working on an anti‑static surface.

Installation instructions describe component placement, power‑supply connection, and BIOS configuration. The guide also explains the soft‑off feature, power‑on via the ATX 20‑pin connector, and provides troubleshooting tips for POST codes and unexpected errors. This manual is written in Chinese.

What's inside

  • Introduction
  • Features
  • Installation
  • BIOS Settings
  • I/O Connectors
  • Power Supply
  • Troubleshooting
  • Appendix

Specifications

Form factorATX
Processor socketSocket 370
Supported CPU speed133/100/66 MHz
Memory typePC‑133 SDRAM
AGP slotVB286S3A
Power connector20‑pin ATX

Frequently asked questions

What safety precautions should be taken when handling the EP-3VBA+ motherboard?

Handle the board on an anti‑static surface, avoid static discharge, and do not touch components unnecessarily.

Download PDF (1.3 MB)
