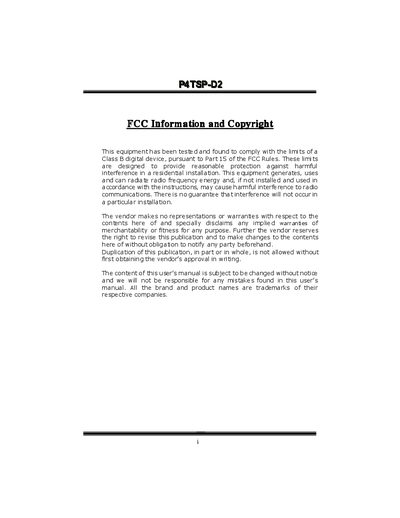

This document contains information about the P4TS P4TSP-D2 product and copyright statement. The equipment has been tested and complies with the FCC rules. It is designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses, and can radiate radio frequency energy, which may cause interference to radio communications if not installed and used according to the instructions.
This manual covers the main features of the P4TSP-D2 motherboard, including CPU support, memory configuration, I/O interfaces, and expansion slots. It also details the layout of connectors such as USB, audio, IDE, and SATA, as well as the network and audio chipsets used.
Installation procedures are described, including CPU mounting, jumper settings, and SATA driver installation. Safety notices, FCC compliance information, and warranty statements are also included. This manual is written in Chinese.
| CPU socket | Socket 478 |
|---|---|
| Memory type | 64‑bit DDR, 2 DIMM slots |
| Maximum memory | 2 GB |
| DDR speed | DDR400 (3.2 GB/s single‑channel) |
| IDE devices | Supports 4 IDE devices |
| PCI slots | 5 × 32‑bit PCI slots |
| AGP slot | 1 × AGP 4X slot |
| USB ports | 4 × USB 2.0 ports |
| Network controller | Realtek RTL8100C / RTL8110B, 10/100/1000 Mbps |
| BIOS | Award BIOS, APM 1.2, ACPI |
It provides a Socket 478 for CPU installation.
The board supports up to 2 GB of DDR memory.
There are four USB 2.0 ports on the motherboard.
The board uses a Realtek RTL8100C/RTL8110B controller supporting 10/100/1000 Mbps.
