GA-8GE800 Pro P4 Titans main-board chinese installation Manual

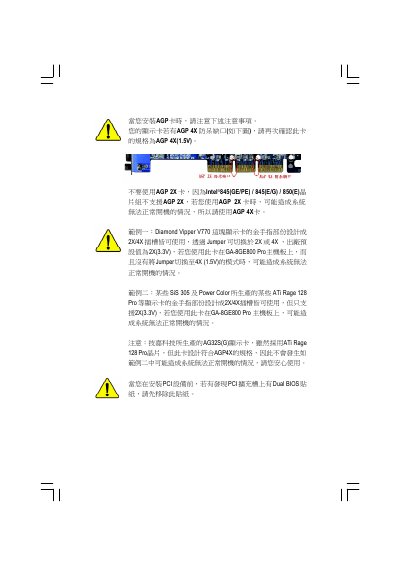

This document introduces the installation precautions for AGP cards on Gigabyte 8GE800 Pro motherboard.

Brand: GA-8GE800
Category: Motherboard
Document type: Installation Guide
Language: Chinese
Pages: 112
File format: PDF
File size: 5.7 MB
Published: 05 April, 2012
Updated: 30 September, 2023
MD5 checksum: 5EC5BC4C6405AD90C01D8F3C939502C8
PDF: GA-8GE800 Pro P4 Titans main-board chinese installation Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing the GA‑8GE800 Pro motherboard, covering CPU, memory, expansion cards, power connections, and I/O configuration. It also includes BIOS setup information, audio/video options, and troubleshooting tips.

The document contains technical specifications such as supported processors, chipset details, memory types, AGP and PCI slots, USB ports, and the integrated RealTek ALC650 audio codec. Contact information for Gigabyte support worldwide is listed at the end of the guide. This manual is written in Chinese.

What's inside

Motherboard Layout
CPU Installation
Memory Installation
AGP and PCI Slots
Power Connectors
I/O Ports
Audio and Video
BIOS Setup
Troubleshooting

Specifications

CPU socket	Socket 478
Supported CPU	Intel Pentium 4 (Northwood, 0.13 µm)
Chipset	Intel 845GE
Memory type	DDR333/DDR266 DIMM, up to 2 GB
AGP slot	AGP 4X (1.5 V)
USB ports	6 USB 2.0/1.1 ports
Audio codec	RealTek ALC650
BIOS	Award BIOS with Q‑Flash

Frequently asked questions

What CPU socket does the GA‑8GE800 Pro use?

The motherboard uses a Socket 478 for Intel Pentium 4 processors.

How many USB ports are provided on the GA‑8GE800 Pro?

It provides six USB 2.0/1.1 ports.

Which audio codec is integrated on this motherboard?

The board includes a RealTek ALC650 audio codec.

What type of AGP slot is available?

An AGP 4X slot operating at 1.5 V is provided.

Download PDF (5.7 MB)
