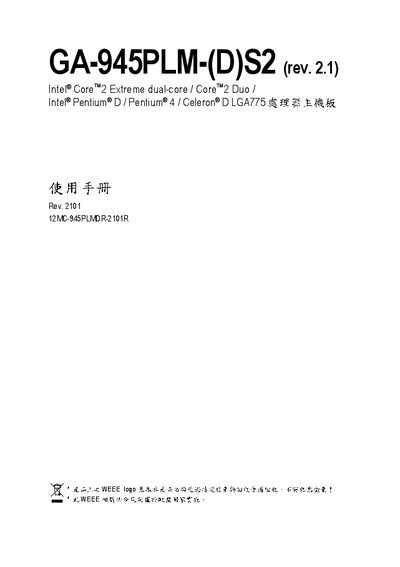

GA-945PLM-DS2/GA-945PLM-S2 (rev. 2.1) is a motherboard released by Gigabyte, supporting Intel Core TM 2 Extreme dual-core/Core TM 2 Duo/Intel Pentium® D/Pentium® 4/Celeron® D LGA775 processors.
This manual covers the GA-945PLM-DS2 (rev. 2.1) motherboard, detailing component layout, installation procedures for the CPU, memory, and expansion cards, and step‑by‑step BIOS configuration. It also includes safety information, FCC and CE compliance statements, and a list of accessories.
Additional sections describe driver installation, unique features such as EasyTune and Xpress Recovery, troubleshooting tips, and contact information for Gigabyte global support centers. This manual is written in Chinese.
| Chipset | Intel 945PL |
|---|---|
| Southbridge | Intel ICH7 |
| CPU Socket | LGA775 |
| PCI Express Slots | x16 |
| LAN Controller | Marvell 88E8001 |
| USB Ports | 8 |
| SATA Ports | 4 (3 Gb/s) |
| Memory Type | DDR2 533/400 MHz DIMM, Dual Channel |
| CPU Clock Support | 200 MHz / 133 MHz |
It uses the Intel 945PL chipset.
The board supports the LGA775 socket.
The motherboard provides eight USB ports.
A Marvell 88E8001 LAN controller is integrated.
