Introduces the features and characteristics of the GA-8I945GMF-RH motherboard

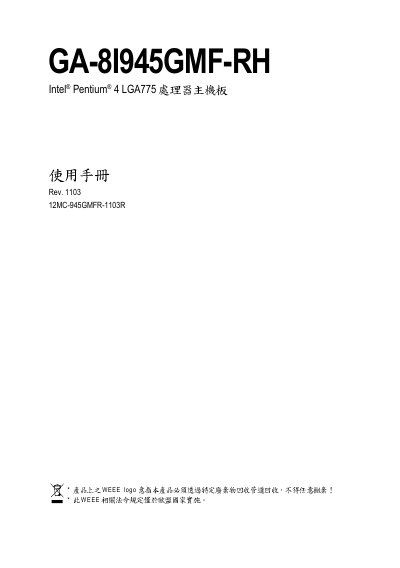

This manual provides detailed instructions for installing and configuring the Gigabyte GA-8I945GMF-RH motherboard. It includes sections on BIOS setup, CMOS features, integrated peripherals, power management, and troubleshooting.
The document also lists the technical specifications of the board, such as CPU socket type, supported processors, memory capacity, expansion slots, and onboard audio and networking components.
| CPU socket | LGA775 |
|---|---|
| Supported CPUs | Intel® Pentium® D / Pentium® 4 |
| Front Side Bus | 1066/800/533 MHz |
| Memory slots | 4 DDR2 DIMM |
| Maximum memory | 4 GB |
| Memory type | DDR2 667/533/400 MHz |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| SATA ports | 4 SATA 3 Gb/s |
| USB ports | 8 USB 2.0/1.1 |
| Audio codec | ALC882 High Definition Audio |
| LAN controller | Marvell 8053 10/100/1000 Mbit |
It uses an LGA775 socket.
The board provides four DDR2 DIMM slots, supporting up to 4 GB of memory.
It includes an ALC882 High Definition Audio codec.
A Marvell 8053 controller providing 10/100/1000 Mbit Ethernet.
