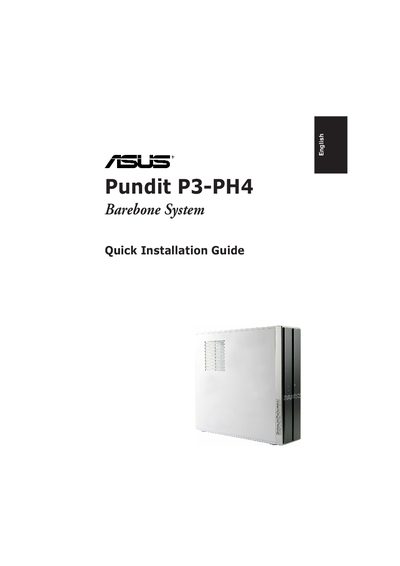

This is an English quick installation guide for the Pundit P3-PH4 Barebone System. It introduces the features and characteristics of the product and describes the front panel and rear panel interfaces.
This guide walks you through the hardware layout of the Pundit P3-PH4, describing front and rear panel connectors, internal components such as the power supply, motherboard, and drive bays, and how to select the correct input voltage. Detailed procedures cover removing the chassis cover, installing the CPU, CPU fan, memory modules, expansion cards, optical and SATA drives, and re‑assembling the system.
Each section includes clear numbered steps and illustrations to help users safely complete the installation, from setting the voltage selector switch to securing the hard‑disk drive and finalizing the front‑panel assembly.
| Input voltage selector | 115 V / 230 V |
|---|---|
| CPU socket type | LGA775 |
| Memory slots | DIMM sockets |
| Optical drive bay size | 5.25‑inch |
| Hard‑disk interface | SATA |
Use the voltage selector switch beside the power connector: set it to 115 V for 100‑127 V mains, or to 230 V for 200‑240 V mains.
