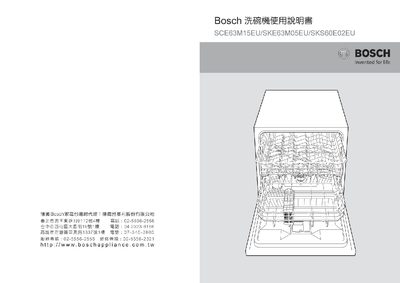

This manual explains safe use of Bosch dishwashers, covering important safety notices, machine specifications and required water and power connections. It also details how to install the unit, connect water and drain lines, and set up the built‑in water‑softening system.
Operating instructions describe the program keys, reset procedure, detergent and rinse‑aid usage, and how to select wash cycles. The final sections give maintenance tips, recycling information and a troubleshooting guide for common faults. This manual is written in Japanese.
| Voltage / Frequency | 220 V / 60 Hz |
|---|---|
| Power / Current | 2.3 kW / 10 A |
| Power cord type | European standard cord |
| Water pressure range | 0.5 bar – 10 bar |
| Minimum water flow rate | 10 L/min |
| Maximum water temperature | 60 °C |
Connect the drain pipe with a length of 210 cm; an extension pipe of up to 170 cm can be used if needed.
The dishwasher works with water pressure between 0.5 bar and 10 bar.
Add the recommended water‑softening agent to the built‑in softener compartment as instructed in the manual.
