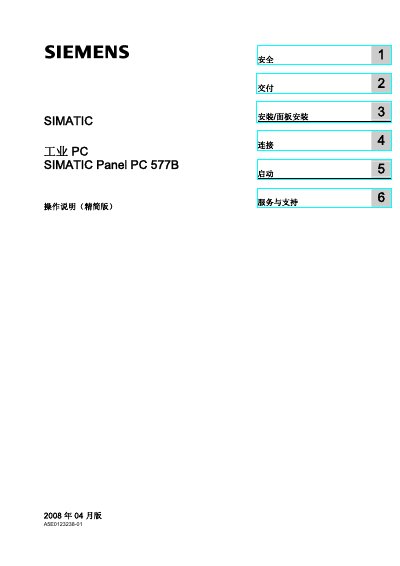

This manual covers safety instructions, delivery inspection, and detailed installation procedures for the SIMATIC Panel PC 577B, including recommended mounting depths and allowed installation positions. It also explains how to connect power, Ethernet, and other peripherals, and provides guidance on ensuring proper grounding and safety compliance.
The startup section describes language selection, panel type configuration, and use of the virtual screen keyboard. The final part offers service and support contacts, online resources, and technical assistance information for the device. This manual is written in Chinese.
| 12" TFT panel depth | 141 mm |
|---|---|
| 15" TFT panel depth | 138 mm |
| 19" TFT panel depth | 147 mm |
