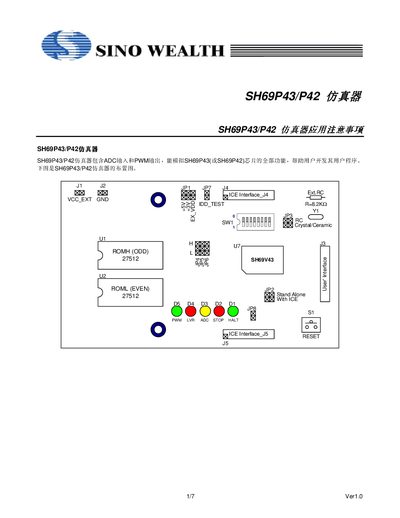

This document introduces the features and characteristics of the SH69P43/P42 emulator, including two working modes and the user program emulation process.
The SH69P43/P42 emulator, produced by Sino Wealth, provides ADC input, PWM output and full emulation of the SH69P43 or SH69P42 chip. It can operate in two modes: ICE (online) mode, where it connects to a SH66 series ICE motherboard, and Stand‑alone (offline) mode, where an EPROM with the user program is inserted directly.
The manual describes programming procedures, jumper and switch settings, connector pinouts, LED status indicators, and power specifications. It also includes important programming cautions and troubleshooting tips for reliable development. This manual is written in Chinese.
