This is a user manual for a Whirlpool washing machine, which includes the washing machine's features, operation methods and other information.

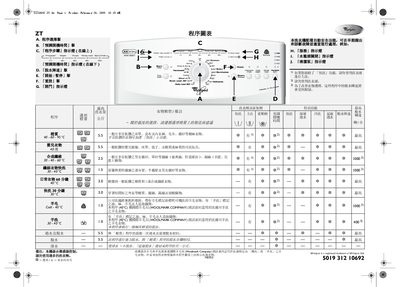

This document provides the programme chart for the Whirlpool ZT washing machine, describing each wash cycle, selectable options such as Prewash, Intensive rinse, Cold wash, Rinse hold and Variable spin, and the associated indicators on the control panel. It also explains how to start, pause, delay, or cancel a programme and what the service and safety lights indicate.
A consumption data table gives typical water usage, energy consumption and programme duration for common loads (Cotton, Synthetics, Wool, etc.). The manual includes preparation steps, detergent limits, and guidance for handling special fabrics and wool‑marked garments. This manual is written in Chinese.
| Water usage for Cotton programme | 95 L |
|---|---|
| Energy consumption for Cotton programme | 1.70 kWh |
| Programme duration for Cotton programme | 200 min |
Press the “Start delay” button several times to select a delay of 1, 3, 6, 9 or 12 hours; the indicator lamp lights up and turns off when the programme starts.
The lamp lights before the programme starts and after it ends to show the door can be opened; it must stay locked while a wash cycle is running.
Press and hold the “Reset” button for at least 3 seconds; any water remaining is drained before the lid can be opened.
