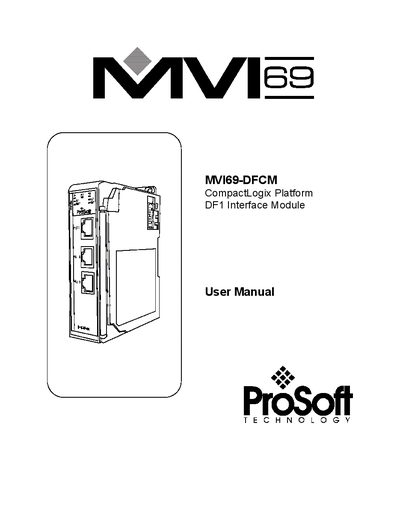

This manual provides information about the MVI69-DFCM CompactLogix Platform DF1 Interface Module. It includes: Overview, Connections, Configuration, and Installation.
This manual describes the MVI69-DFCM DF1 Communication Module, which enables Allen‑Bradley CompactLogix processors to interface with DF1‑compatible devices. It details the module’s functional capabilities, such as acting as a DF1 master or slave, supporting up to 5,000 registers, and offering configurable communication parameters.
The document also includes hardware specifications, wiring instructions, diagnostic procedures, and warranty information, helping users install, program, and maintain the module safely and effectively.
| Current Load | 800 mA @ 5 V |
|---|---|
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5 % – 95 % (non‑condensing) |
| Register Capacity | 5,000 registers |
| RJ45 Connectors | Two RJ45 connectors |
| Baud Rate | 110 – 115,200 bps |
| Parity Options | None, Odd, Even |
| Stop Bits | 1 or 2 |
The module can store and transfer up to 5,000 registers between the CompactLogix processor and the DF1 network.
