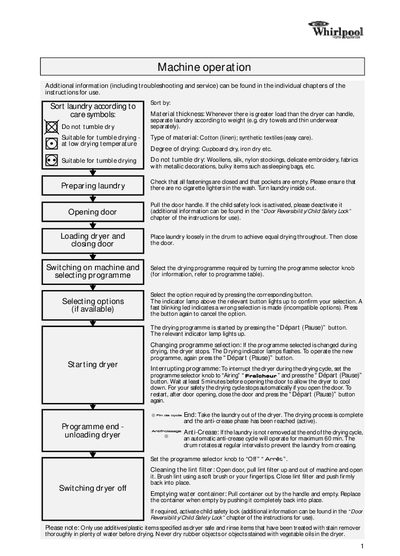

The document provides detailed information about machine operation, including troubleshooting and service. It suggests sorting laundry based on material thickness, type, and desired degree of drying. It also provides instructions for checking fastenings, emptying pockets, and handling the door. Additionally, it guides the user on how to place laundry in the drum, select the desired drying program and options, and start the drying process by pressing the 'Start (Pause)' button.
This guide explains how to operate the Whirlpool AWZ 8677 dryer, including loading laundry, selecting drying programmes, using options such as Gentle, Rapid, Buzzer, Anti‑crease and Delayed Start, and starting or interrupting a cycle. It also describes the indicator lamps that confirm selections, warn of filter or heat‑exchanger cleaning needs, and show remaining drying time.
Maintenance instructions cover cleaning the lint filter, emptying and refilling the water container, cleaning the heat exchanger, and replacing the drum light bulb. A troubleshooting section lists common issues, checks to perform, and contact information for after‑sales service.
| Maximum load capacity | 7 kg |
|---|---|
| Maximum load for delicate programme | 3.5 kg |
Open the door, pull the filter upwards, brush lint with a soft brush or fingertip, close the filter and push it back into place.
It prevents laundry from creasing for up to 12 hours after the drying cycle ends.
