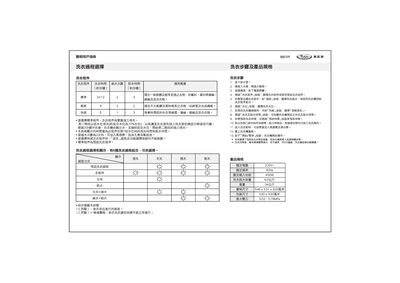

The Whirlpool BS871FP washing machine user guide explains how to connect the water inlet, power supply, and start a wash cycle. It describes the selection of wash programs, water‑level settings, delay timer, and special functions such as basket cleaning and spin‑only mode.
The manual also provides product specifications, water‑consumption data, and a list of common faults with causes and solutions, helping users diagnose and resolve issues like imbalance (E1) or drainage problems. This manual is written in Chinese.
| Rated Voltage | 220V |
|---|---|
| Rated Frequency | 50Hz |
| Rated Input Power | 400W |
| Outer Dimensions | 546 × 537 × 920 mm |
| Water Pressure | 0.02 – 0.78 MPa |
Connect the water inlet and power, press the power switch, select a wash program with the "Wash Program" button, then press "Start / Pause" to begin washing.
Select the "Basket Cleaning" function; the water level is preset at level 7 and the drum will run a cleaning cycle.
Check that the drain pipe is correctly positioned and not clogged or frozen; lower the pipe and clear any blockage, then restart the washer.
