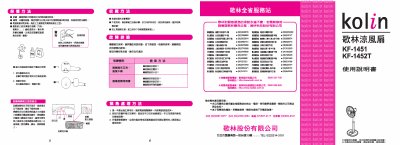

This manual explains how to assemble the KF-1451/KF-1452T fan, connect the power cord, attach the front and rear grids, and install the motor shaft. Detailed steps for adjusting tilt, setting speed, and using the timer are included.
Safety guidelines cover cleaning methods, storage, and emergency handling. The document also lists service stations, warranty information, and troubleshooting procedures for common faults. This manual is written in Chinese.
| Rated Voltage | AC110V |
|---|---|
| Frequency | 60 Hz |
| Power Consumption | 70 W |
| Dimensions (W×D×H) | 420 mm × 400 mm × 1010 mm |
Use a soft cloth dampened with warm water or a neutral detergent to wipe the fan, then dry it with a dry cloth. Do not use volatile solvents such as gasoline.
Turn off the power and unplug the unit, then contact the nearest Kolin service station for repair.
Lightly press the base and rotate the fan left or right while holding the rear grid handle to set the desired airflow direction.
