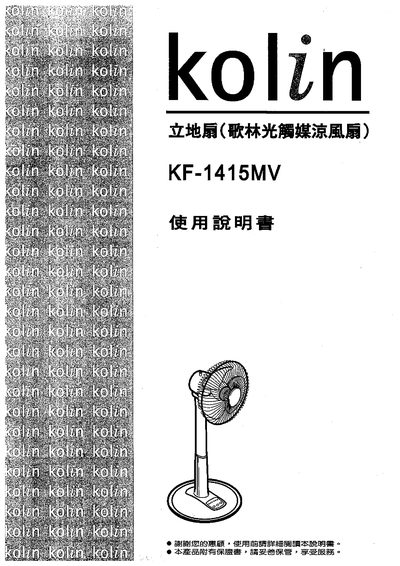

This manual explains how to assemble the KF-1415MV fan, including attaching the motor, blades, front and rear nets, and ensuring correct orientation. Safety warnings are highlighted, such as keeping the fan away from high‑temperature sources and avoiding direct contact with moving parts.
Operating instructions cover the different wind modes, timer settings, and the UV‑LED indicator. Maintenance steps describe how to clean the filter and mesh, dry the components, and perform regular inspections. Technical specifications and service contact details are also included. This manual is written in Chinese.
| Power consumption | 53W |
|---|---|
| Voltage / Frequency | AC 110V 60Hz |
| Air flow | ≥40 m³/min |
| Blade speed | ≥185 m/min |
| Dimensions (L×W×H) | 380 × 430 × 776‑1000 mm |
| Gross weight | 4.0 kg |
| Net weight | 5.8 kg |
