TDA2050 is a high-power audio amplifier sold by Dinghao Electronics. It has a rated output power of 50W, a wide operating voltage range, supports single or dual power supply, low distortion, and has short circuit protection and thermal shutdown functions.

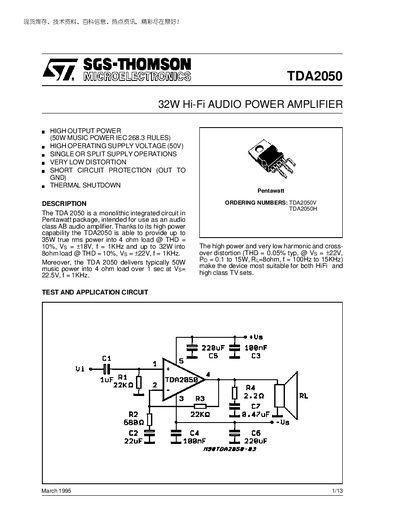

The TDA2050 is a monolithic Pentawatt‑package integrated circuit designed for Class‑AB audio amplification. It delivers up to 35 W into a 4 Ω load (music power) and 32 W into an 8 Ω load, with very low total harmonic distortion and short‑circuit protection.
The device can be used in split‑supply or single‑supply configurations, and includes thermal shutdown at 150 °C. Typical applications include Hi‑Fi audio equipment and high‑class TV sets. Detailed electrical characteristics, recommended external component values and layout guidelines are provided in the datasheet.
| Supply Voltage Range | +4.5 V to +25 V |
|---|---|
| Typical THD | 0.05 % typ @ Vs=+22 V |
| Thermal Shutdown Temperature | 150 °C |
| Input Offset Voltage | +15 mV |
| Open Loop Voltage Gain | 80 dB |
| Quiescent Drain Current (Vs=+4.5 V) | 30 mA |
The maximum supply voltage is +25 V.
Typical THD is 0.05 % when the supply voltage is +22 V.
Yes, the datasheet includes a single‑supply application circuit and recommended component values.
