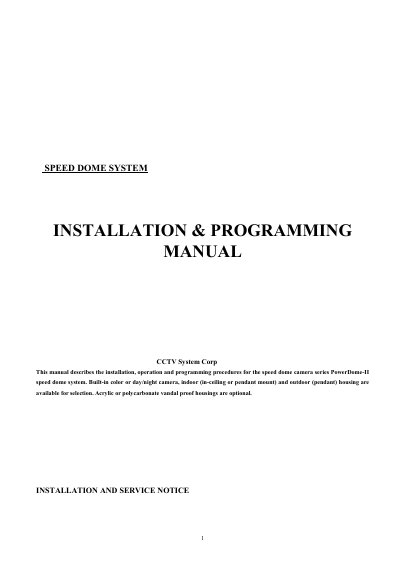

This manual describes the installation, operation and programming procedures for the PowerDome-II speed dome camera series. Built-in color or day/night camera, indoor (in-ceiling or pendant mount) and outdoor (pendant) housing are available for selection. Acrylic or polycarbonate vandal proof housings are optional.
The PowerDome-II speed dome camera system from CCTV System provides a fully integrated solution with a digital camera, lens, multi‑protocol receiver, high‑speed pan/tilt drive and optional vandal‑proof housings. It supports indoor ceiling or pendant mounting and offers 360° continuous rotation, 90° tilt, and optional 180° auto‑flip.
The manual covers safety notices, detailed installation steps for both in‑ceiling and pendant mounts, wiring, dome‑drive setup, and extensive programming options such as alarms, auto‑flip, backlight compensation, and zone configuration. It also lists technical specifications for the camera modules and explains how to adjust settings like gain, shutter speed, and zoom.
| Pixel resolution | 752(H) x 494(V) NTSC |
|---|---|
| Horizontal resolution | 480 TVL |
| Color / B&W resolution | 480 TVL Color / 570 TVL B&W |
| Lens | F1.6 f=4‑88mm |
| Optical zoom | 22× |
| Sensitivity (Color) | 0.1 Lux |
| Shutter speed range | 1/1.5‑1/30000 s |
The PowerDome‑II provides seven alarm inputs.
The dome can rotate continuously through 360°.
Outdoor pendant models are sealed to NEMA 4X and IP66.
The system supports 64 programmable presets.
