SPD-T60 temperature monitoring recorder is a device specially used for temperature monitoring in medical, laboratory, chemical and other places. It has two relay outputs, two inputs, telephone interface, data interface and other functions, which can realize remote control and remote monitoring.

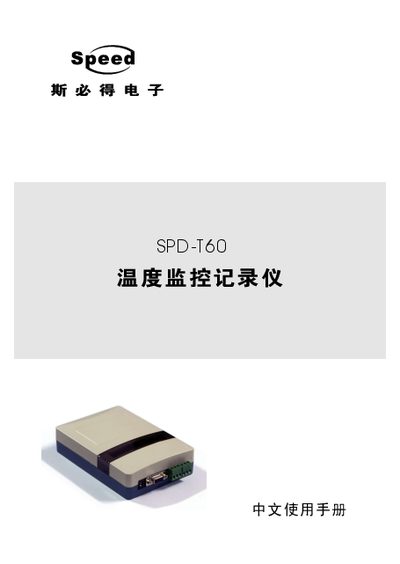

This manual introduces the Speed T60 temperature monitoring recorder, a multifunctional remote controller designed for pharmaceutical, laboratory, and chemical environments. It details the device’s hardware installation, initial setup, and control operations, including relay outputs, temperature sensor connections, and telephone alarm functions.
The guide also covers troubleshooting, FAQ, and technical specifications such as dimensions, power requirements, and sensor performance, helping users configure and maintain reliable temperature monitoring and remote alarm capabilities. This manual is written in Chinese.
| Dimensions | 160mm × 110mm × 40mm (L×W×H) |
|---|---|
| Working Voltage | DC 9 V |
| Load Voltage | AC 250 V |
| Load Current | 3 A |
| Operating Temperature Range | -20 °C to +60 °C |
| Temperature Sensor Model | DS18B20 |
| Sensor Measurement Range | -55 °C to 125 °C |
| Sensor Accuracy | ±0.5 °C (‑10 °C to +85 °C) |
| Sensor Cable Length | 2 m |
Dial *4#; the controller will read the temperature once and announce it via voice.
