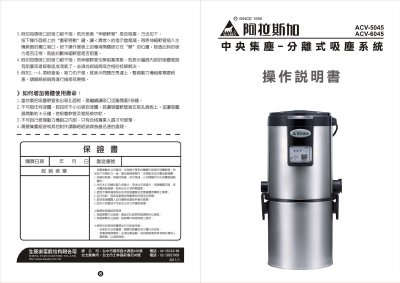

The ACV-5045 is a central, split‑type vacuum system designed for commercial or residential use. It features a high‑density medical‑grade main filter, a polypropylene secondary filter, and a 5‑valve suction unit.
The manual covers important safety warnings, power connection, pre‑operation checks, bag replacement, hose connection, and detailed troubleshooting steps to keep the system running reliably. This manual is written in Chinese.
| Air watt | 380 |
|---|---|
| Maximum area | 80 |
| Pipe length | 45 m |
| Air suction | 105 |
| Air flow | 204 m³/h |
| Main filter | High‑density medical grade |
| Secondary filter | Polypropylene woven |
| Current | 5.7 A |
| Voltage | 220~230 V 50/60 Hz |
| Bag capacity | 7 L |
| Noise level | 68 dBA |
| Weight | 7.5 kg |
| Dimensions (L×W×H) | 373×335×676 mm |
Connect the power cord to a 220 V outlet, set the independent switch box to the “ON” position, and verify that the power‑indicator lamp on the control panel lights up before operating the unit.
Open the bag‑holding latch, remove the full bag, align the new bag’s opening with the connector, rotate it into place, then press the latch down to secure the bag before resetting the control panel.
Verify that the mains power is connected, ensure the dedicated switch box is not tripped, confirm the switch is set to “ON”, and check that the plug is fully inserted into a 220 V socket.
Press the “Reset” button on the control panel and run the unit with the hose attached; if suction is weak, the hose is likely blocked and should be inspected or replaced.
