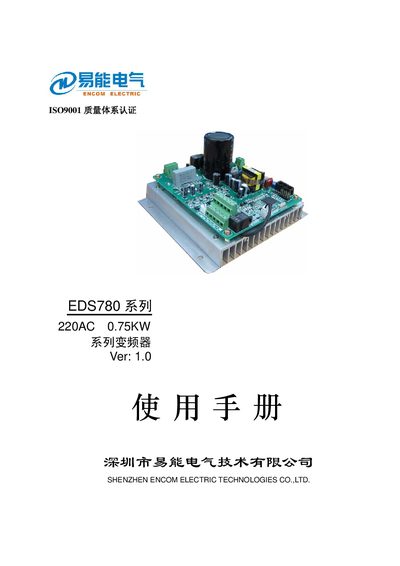

This document is a user manual from Shenzhen Encom Electric Technologies Co., Ltd., introducing the ISO9001 certified series of inverters. The inverter mentioned in the document is the EDS780 series, with a power of 0.75KW and input voltage of 220AC. The manual covers safety information, usage precautions, model specifications, functional parameters, troubleshooting, and maintenance.
This manual covers safety information and usage precautions for the EDS780 series frequency transformer, including warnings about cutting power while the drive is running, proper grounding, and installation on non‑flammable surfaces. It also details the applicable motor types, environmental limits, and recommended operating practices.
The document includes the product specifications, wiring diagrams, interface descriptions, dimensions, and a complete maintenance and warranty section. Users are guided through installation steps, connection of control terminals, and routine servicing to ensure reliable operation. This manual is written in Chinese.
| Input Voltage / Power Rating | 220 VAC, 0.75 kW |
|---|---|
| Rated Capacity and Output Current | 1.8 kVA, 4.7 A, 0.75 kW |
| Model Designation | EDS780-2S0007 |
Do not cut the power while the drive is running, ensure the unit is fully stopped, ground the device properly, avoid installing on flammable or explosive environments, and keep terminals insulated.
Mount the drive on a surface that can support its weight, provide adequate ventilation, follow the wiring diagram for connections, and secure the grounding terminal.
During the warranty period the manufacturer will repair faults not caused by misuse, unauthorized modification, or external damage; service fees are calculated based on actual costs.
