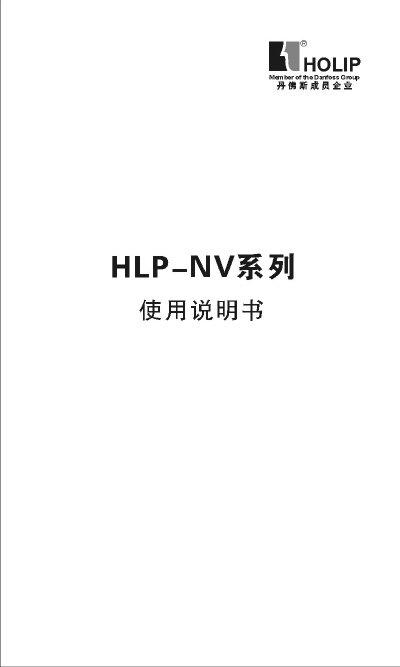

User manual for HLP-NV series multi-function, high-performance vector frequency inverter. This inverter has the characteristics of multi-functionality and high performance.
This manual begins with safety warnings and precautions, followed by detailed product information such as model numbers, power ratings and electrical specifications. It then covers installation and wiring procedures, including connection to AC220 V or AC380 V supplies.
Subsequent sections describe the operation panel, parameter settings, functional descriptions, fault diagnosis and remedies, routine maintenance, optional accessories, application case studies, and supported communication protocols such as Modbus RTU. This manual is written in Chinese.
| Input Voltage | AC 220 V / AC 380 V |
|---|---|
| Frequency | 50/60 Hz |
| Model Designation | HLP‑NV04D0‑21‑A |
It supports Modbus RTU and a proprietary FC protocol.
Connect the unit to the appropriate AC voltage (220 V or 380 V) according to the model, following the wiring diagrams in the installation section.
