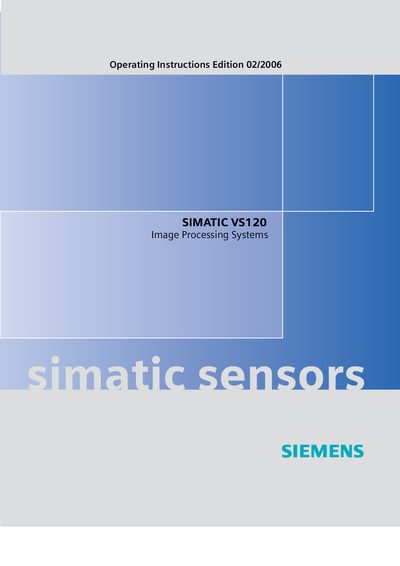

SIMATIC VS120 is an image processing system that provides sensor and vision sensor capabilities. This document describes the installation, connection, commissioning, operation, interface, and technical data of the VS120.
The manual begins with safety instructions that define the meaning of Danger, Warning and Caution symbols and specify that only qualified personnel may set up and operate the VS120 system. It also outlines the prescribed usage, trademarks, and liability disclaimer.
Subsequent sections cover the product description, network and system integration, installation of the processing unit and sensor head, connection guidelines (including Ethernet and PROFINET/PROFIBUS), commissioning steps, operation, technical data, dimension drawings, scope of delivery, service & support, and regulatory declarations. The document ends with a glossary and index.
Danger indicates that death or severe personal injury will result if proper precautions are not taken; Warning indicates that death or severe personal injury may result; Caution indicates minor injury or property damage.
Only qualified personnel may commission and operate the device, as defined in the manual.
By establishing an Ethernet connection between the processing unit and the PC.
