TIP125/126/127 three Darlington power transistors, features are designed for general-purpose amplifier and low speed switching applications, RoHS compliant.

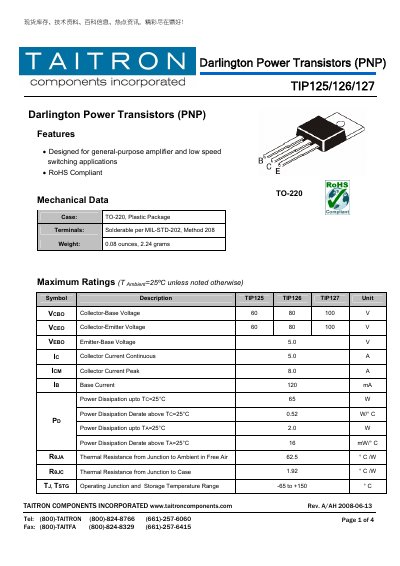

This datasheet describes the TIP125, TIP126, and TIP127 PNP Darlington power transistors. It includes features, mechanical data, maximum ratings, electrical characteristics, and package dimensions.
The transistors are designed for general‑purpose amplifier and low‑speed switching applications and are RoHS compliant. Mechanical details such as the TO‑220 plastic case, weight, and thermal resistance are also provided.
| Collector‑Base Voltage (VCBO) | 60 V (TIP125), 80 V (TIP126), 100 V (TIP127) |
|---|---|
| Collector‑Emitter Voltage (VCEO) | 60 V (TIP125), 80 V (TIP126), 100 V (TIP127) |
| Emitter‑Base Voltage (VEBO) | 5.0 V |
| Continuous Collector Current (IC) | 5.0 A |
| Peak Collector Current (ICM) | 8.0 A |
| Power Dissipation (TC=25 °C) | 65 W |
| Thermal Resistance Junction‑to‑Ambient (RθJA) | 62.5 °C/W |
| Package | TO‑220, Plastic |
The TIP126 transistor is rated for a collector‑emitter voltage of 80 V.
All three devices have a continuous collector current rating of 5.0 A.
They are housed in a TO‑220 plastic package.
