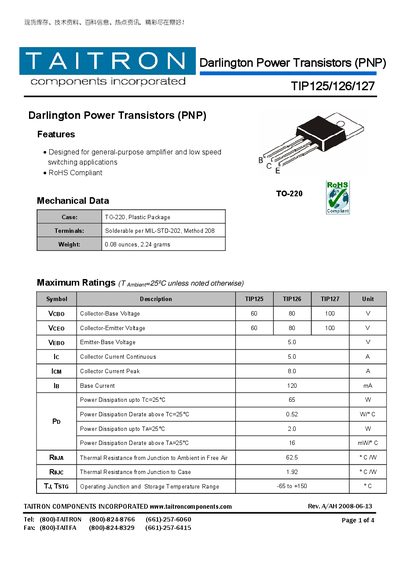

The TIP125/126/127 series are Darlington PNP power transistors designed for general‑purpose amplifier and low‑speed switching applications. They are RoHS compliant and housed in a TO‑220 plastic package.
The datasheet provides mechanical dimensions, electrical ratings, thermal characteristics, and pin configuration, along with contact information for Taitron Components worldwide.
| Collector‑Base Voltage (VcBo) | 60‑100 V |
|---|---|
| Collector‑Emitter Voltage (VcEO) | 60‑100 V |
| Emitter‑Base Voltage (VEBO) | 5.0 V |
| Continuous Collector Current (Ic) | 5.0 A |
| Peak Collector Current (Icom) | 8.0 A |
| Base Current (IB) | 120 mA |
| Power Dissipation (TC=25 °C) | 65 W |
| Power Dissipation (TA=25 °C) | 2.0 W |
| Operating Temperature Range | -65 °C to +150 °C |
| Package | TO‑220 plastic |
The transistors can handle a continuous collector current of 5.0 A.
They are supplied in a TO‑220 plastic package.
They are rated for storage and junction temperatures from –65 °C to +150 °C.
The collector‑base voltage rating is up to 100 V.
