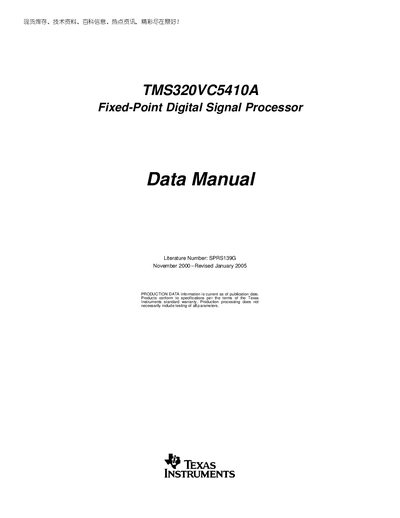

This document is the data manual for the TMS320VC5410A Fixed-Point Digital Signal Processor. The manual provides information on product inventory, technical data, encyclopedia information, and hot news. The products conform to specifications per the terms of the Texas Instruments standard warranty.
The TMS320VC5410A is a fixed‑point digital signal processor from Texas Instruments. This data manual provides a detailed description of the device, including functional overview, on‑chip peripherals, memory architecture, and timing characteristics. It also lists the electrical specifications, recommended operating conditions, and absolute maximum ratings.
The document includes pin‑assignment tables for the 144‑ball GGU BGA and 144‑pin PGE quad‑flatpack packages, mechanical drawings with dimensions, a list of figures and tables, revision history, and an important notice about warranty and product updates.
| Literature Number | SPRS139G |
|---|---|
| Revision Date | November 2000 – Revised January 2005 |
| Package (GGU) | 144‑Ball GGU MicroStar BGA |
| Package (PGE) | 144‑Pin PGE Low‑Profile Quad Flatpack |
| Mechanical Drawing | PGE (S‑PQFP‑G144) Plastic Quad Flatpack |
The literature number is SPRS139G.
It was revised in January 2005 (originally published November 2000).
Mechanical dimensions are listed in the Mechanical Data section, showing the PGE (S‑PQFP‑G144) package dimensions in millimeters.
