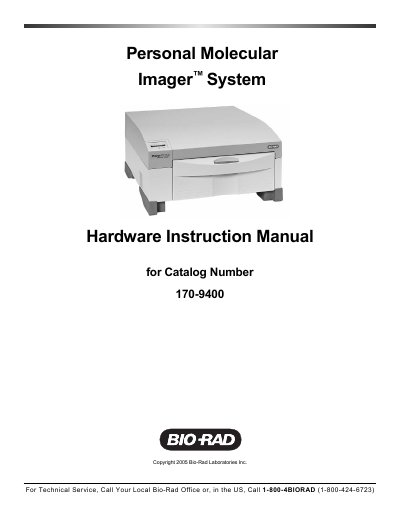

This document is the hardware instruction manual for the Bio-Rad Personal Molecular Imager system
This manual covers all aspects of the Personal Molecular Imager (PMI) system, including safety information, installation requirements, hardware connections, and detailed operating procedures such as scanning, screen preparation, and exposure cassette use. It also describes routine care, maintenance tasks, and troubleshooting guidance to keep the instrument performing optimally.
Appendices provide the system’s technical specifications, warranty terms, and a list of optional accessories with catalog numbers, helping users order replacement parts or additional components as needed.
| Linear dynamic range | 1:65535 |
|---|---|
| Pixel resolution | 50, 100, 200 or 800 µm selectable |
| Image resolution | 2 line pairs/mm or 250 µm |
| Pixel density | 16‑bit (0–65,535) |
| Signal decay (32P) | 50% retention in 24 hr |
| Scanning area | 35 × 43 cm |
| Laser scanner dimensions | 59 × 69 × 30.25 cm |
| Excitation source | 532 nm diode‑pumped solid‑state laser, 25 mW |
| Weight (scanner) | 30 kg |
| Input voltage range | 90–260 VAC, 50–60 Hz |
The scanner requires an input voltage of 90–260 VAC at 50–60 Hz and a maximum power of 650 W.
