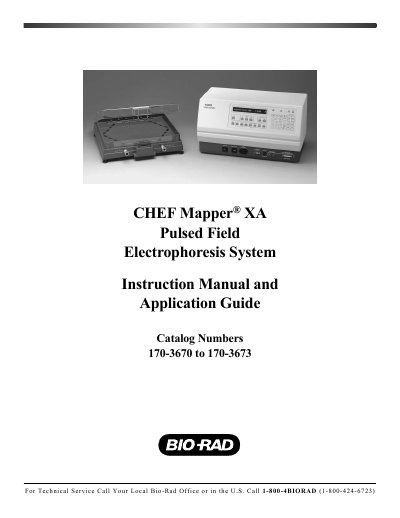

CHEF Mapper Pulsed Field Electrophoresis System Instruction Manual
This manual covers the CHEF Mapper XA pulsed‑field electrophoresis system, including an overview of the technology, system specifications, and a description of major components. It explains safe setup, operation procedures, sample preparation, and gel electrophoresis steps, as well as detailed tutorials on the auto‑algorithm and interactive algorithm modes.
Additional sections address applications, routine maintenance, troubleshooting, warranty information, and product accessories. Safety interlocks, voltage limits, and environmental operating ranges are highlighted to ensure reliable and safe use in the laboratory.
| Power supply voltage | 350 V max |
|---|---|
| Maximum current | 0.5 A |
| Allowable voltage gradients | 0.6–9 V/cm (0.1 V/cm steps) |
| Power module dimensions | 34.5 × 55.9 × 30.5 mm |
| Power module weight | 16 kg |
| Operating temperature range | 10 °C to 32 °C |
| Storage temperature range | 0 °C to 60 °C |
Bio‑Rad Laboratories warrants the power module, chamber, variable‑speed pump, and accessories for one year against defects in materials and workmanship, with repair or replacement free of charge.
Opening the lid breaks the low‑voltage current path, causing the power module to shut off the high‑voltage supply, preventing shock.
A PC with an 80386 processor or compatible running Microsoft Windows 3.1 is required for the interactive algorithm.
