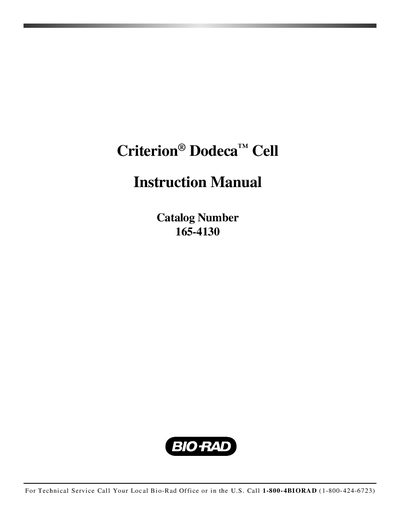

This document is the Bio-Rad Criterion® Dodeca™ Cell Instruction Manual, which introduces the product's features and usage methods.
This manual describes the Criterion Dodeca Cell, a multi‑cell apparatus for mini‑vertical gel electrophoresis that can run one to twelve gels simultaneously. It includes general information, safety limits, component descriptions, and detailed instructions for preparing buffers, gels, and assembling the cell.
Key sections cover buffer preparation, gel loading, power‑supply settings, maintenance procedures, troubleshooting, and warranty information. Safety interlocks and proper handling of the lid and electrodes are emphasized to prevent damage and ensure compliance with EN‑61010 standards.
| Overall size | 49 cm (L) x 18.8 cm (W) x 19.2 cm (H) |
|---|---|
| Maximum buffer volume | 6 liters |
| Minimum buffer volume | 0.34 liters |
| Recommended power supply | PowerPac 200, 600 V, 250 W |
| Weight | 4.66 kg (10.25 lb) |
| Tank material | Acrylic |
| Upper electrode assembly | Polycarbonate with 241 cm platinum wire |
| Lower electrode assembly | Polycarbonate with 201 cm platinum wire |
The maximum voltage limit is 600 VDC.
Up to 6 L of buffer is required for running one gel; the minimum for twelve gels is 0.34 L.
A Bio‑Rad PowerPac 200 power supply (600 V, 250 W) is recommended.
