TechFaith Wireless PIML-900/1800 User Manual

This manual introduces the functional characteristics, interface descriptions, AT command sets and development examples of PIML-900/1800 modules, which can help users develop PIML-900/1800 module products.

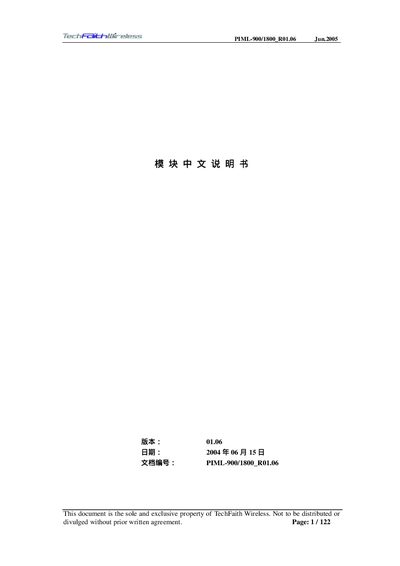

TechFaith Wireless PIML-900/1800 User Manual - cover page
Brand
TECH
Category
Other device
Document type
User Manual
Language
Chinese
Pages
122
File format
PDF
File size
13.3 MB
Published
28 March, 2012
Updated
30 September, 2023
MD5 checksum
C3A1D4CD90B8F2C0919F356B8464D969

About this manual

The PIML-900/1800 is a dual‑band GSM/ DCS1800 module with GPRS Class 10 support, intended for voice, SMS and data applications such as mobile phones, PDAs, wireless modems and POS devices. It integrates the RF front‑end, baseband processor and charging circuit in a compact 58 mm × 32 mm × 3.9 mm package.

The manual describes the module’s hardware interfaces (system connector, power, SIM, audio, serial ports), the full AT command set, GPRS commands, TCP/IP usage, development examples, environmental and RF specifications, and provides connector pin‑out diagrams and ordering information for the AVX 60‑pin connectors. This manual is written in Chinese.

What's inside

  • Version Record
  • Overview
  • Hardware Interfaces
  • Power Supply
  • AT Command Set
  • GPRS Commands
  • TCP/IP Interface
  • Development Examples
  • Structure Technical Features
  • Environmental and RF Characteristics

Specifications

Operating voltage range3.4 V – 4.2 V DC
Peak current requirement≥ 2 A
Dimensions58 mm × 32 mm × 3.9 mm
Supported frequency bandsGSM 900 / DCS 1800
GPRS classClass 10 multi‑slot
SIM card voltage3 V
System connector60‑pin AVX connector

Frequently asked questions

What voltage range does the PIML-900/1800 module require?

The module operates from 3.4 V to 4.2 V DC.

Which GSM frequency bands are supported?

It supports both GSM 900 and DCS 1800 bands.

What is the required peak current for the power supply?

The power source must be able to deliver at least 2 A peak current.

What type of connector is used for the module’s system interface?

A 60‑pin AVX connector is used for the system interface.
