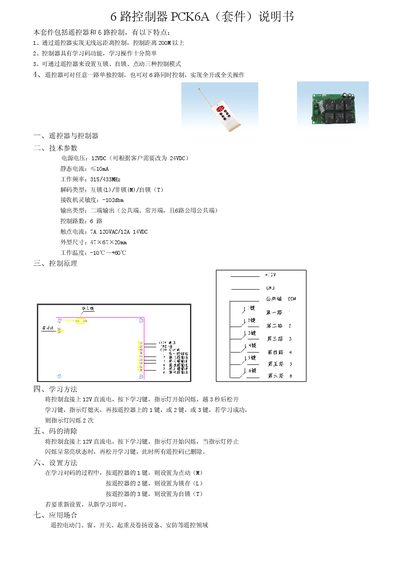

6 路控制器 PCK6A (Kit) Manual, including a remote control and 6-way control, with features such as wireless remote control, control distance of more than 200M, controller has learning code function, can be set by remote control for mutual locking, self-locking, and three control modes such as point-to-point, the remote control can control any one independently, or can control 6 at the same time, to achieve full open or full close operation
The manual introduces the PCK6A 6‑Channel Controller, describing its main features such as six independent control channels, dual voltage operation, and wireless communication at 315/433 MHz.
It provides wiring instructions, parameter tables, reset procedures, and safety guidelines for installing and operating the device. This manual is written in Chinese.
| Control channels | 6 |
|---|---|
| Contact current rating | 7 A 120 VAC / 12 A 14 VDC |
| Input voltage | 12 VDC (optional 24 VDC) |
| Static current consumption | 10 mA |
| Operating frequency | 315 MHz / 433 MHz |
| Receiver sensitivity | -102 dBm |
| Dimensions | 47 × 67 × 20 mm |
| Operating temperature | -10 °C to +60 °C |
The controller operates on 12 VDC, with an optional 24 VDC configuration.
It provides six independent control channels.
The contacts are rated for 7 A at 120 VAC or 12 A at 14 VDC.
