Features and specifications of SVA PF-820 / 830 fax machine

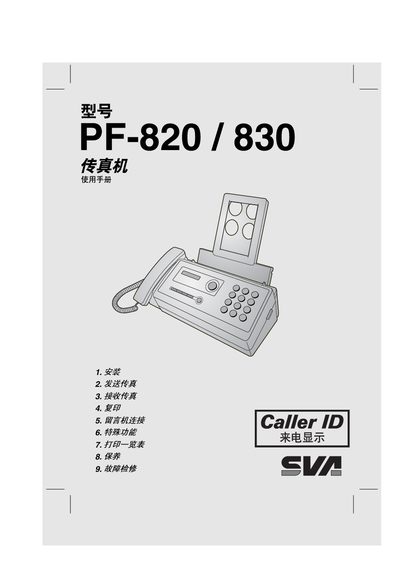

This manual provides detailed instructions for installing, configuring and operating the SVA PF-820/830 fax machine. It covers setup, loading film and paper, dialing, sending and receiving faxes, copying, and connecting to a message system.
Safety precautions, maintenance tips, troubleshooting guides and a quick reference section are also included to help users keep the device running reliably. This manual is written in Chinese.
| Memory size | 448 KB (≈24 pages) |
|---|---|
| Modem speed | 9,600 bps (auto fallback) |
| Transmission time | ≈15 seconds |
| Resolution (horizontal) | 8 pixels/mm |
| Resolution (standard) | 3.85 lines/mm |
| Resolution (fine) | 7.7 lines/mm |
| Resolution (super fine) | 15.4 lines/mm |
| Auto document feeder capacity | 10 pages (80 g/m² A4) |
| Paper tray capacity | ≈50 sheets A4 |
| Power supply | 220 VAC, 50 Hz |
| Relative humidity | 25 %–85 % RH |
| Maximum power consumption | 110 W |
| Dimensions (W×L×H) | 340 mm × 225 mm × 136 mm |
It has a memory size of 448 KB, which can store about 24 pages of fax data.
The device must be connected to a 220 VAC, 50 Hz grounded three‑pin power outlet.
The auto document feeder can hold up to 10 pages of 80 g/m² A4 paper.
