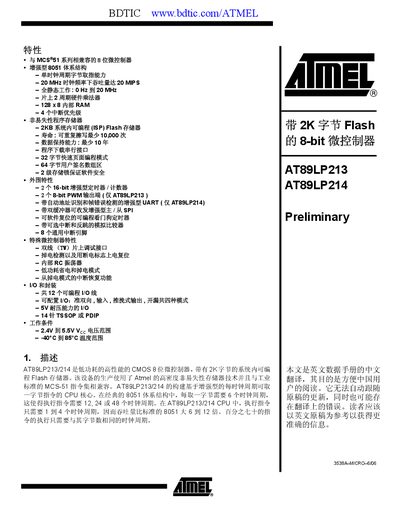

AT89LP213/214 is a low-power, high-performance, CMOS 8-bit microcontroller with 2K bytes of in-system programmable Flash memory. The device is manufactured using Atmel's high-density non-volatile memory technology and is compatible with the industry standard MCS-51 instruction set. AT89LP213/214 is built on an enhanced one-byte-per-clock CPU core. In the classical 8051 architecture, each byte fetch takes 6 clock cycles, which results in 12, 24 or 48 clock cycles to execute an instruction. In the AT89LP213/214 CPU, instruction execution takes only 1 to 4 clock cycles, resulting in a throughput that is 6 to 12 times faster than standard 8051. Seventy percent of the instructions only require the same number of clock cycles as their byte size.
The AT89LP213/214 series are low‑power, high‑performance CMOS 8‑bit microcontrollers compatible with the MCS‑51 architecture. They provide up to 20 MIPS CPU performance, 2 KB on‑chip flash, 128 bytes of RAM and a rich set of peripherals.
The document details the pin configuration, memory organization, timer/counter modules, UART, PWM channels, power‑down modes, interrupt system and programming interface, as well as package options and electrical characteristics.
| CPU speed | 20 MIPS |
|---|---|
| Flash memory | 2 KB |
| I/O pins | 12 |
The device includes 2 KB of on‑chip flash memory.
There are 12 programmable I/O pins.
The core can run at up to 20 MIPS.
