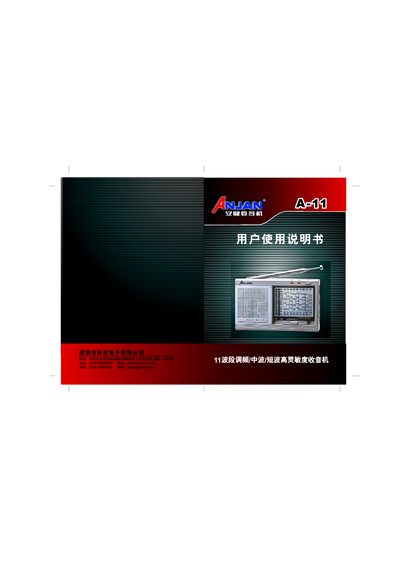

The Anjan A-11 is a multi‑band radio receiver that covers FM (76‑108 MHz), MW (525‑1610 kHz) and short‑wave (4.60‑22.00 MHz). The manual provides step‑by‑step installation instructions, guidance on using internal and external power sources, and detailed operating procedures for each band.
Safety notes, battery replacement instructions, night‑light usage and full technical specifications are also included to help users set up and maintain the device correctly. This manual is written in Chinese.
| FM frequency range | 76.0‑108.0 MHz |
|---|---|
| MW frequency range | 525‑1610 kHz |
| Short‑wave frequency range | 4.60‑22.00 MHz |
| FM sensitivity | 10 µV |
| MW sensitivity | 1 µV/m |
| SW sensitivity | 30 µV |
| Internal speaker impedance | 8 Ω 0.5 W |
| Headphone output impedance | 32 Ω |
| External power supply | 3‑4.5 V, 200 mA max |
| Dimensions (W×H×D) | 122 mm × 74 mm × 26 mm |
| Weight | 155 g |
An external power source of 3 V to 4.5 V, up to 200 mA, may be connected to the designated input.
Turn the band selector to the FM position; the FM indicator light will turn green.
