The ANJAN A-208 is a dual‑band (FM 76‑108 MHz and AM 525‑1610 kHz) digital‑display radio with an LCD screen, built‑in speaker, external antenna, and 3 V DC power from two 7‑size batteries. It offers volume control, headphone jack, and an automatic timer power‑on function.

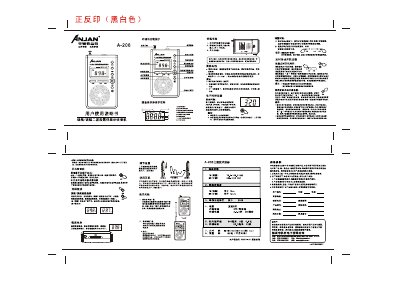

The manual details how to install batteries, set the clock and timer, switch between FM and AM bands, adjust volume, use headphones, and connect the external antenna. It also includes the technical specifications and warranty information for the device. This manual is written in Chinese.
| Frequency range (FM) | 76.0‑108.0 MHz |
|---|---|
| Frequency range (AM) | 525‑1610 kHz |
| Sensitivity (FM) | better than 10 µV |
| Sensitivity (AM) | better than 1 mV/m |
| Selectivity | ≥ 20 dB |
| Power supply | DC 3 V |
| Internal batteries | 2 × 7‑size cells |
| External power input | 3‑4.5 V |
| Headphone jack | 3.5 mm, 32 Ω |
| Weight | ≈ 125 g (without batteries) |
Press and hold the time‑setting button, then press the hour or minute adjustment buttons to set the desired time; release the button to save.
