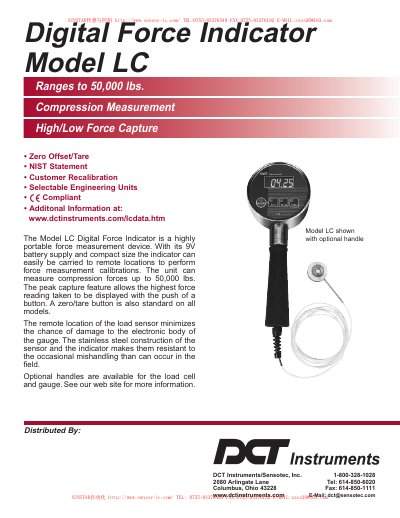

The Model LC Digital Force Indicator is a highly portable force measurement device. With its 9V battery supply and compact size the indicator can easily be carried to remote locations to perform force measurement calibrations. The unit can measure compression forces up to 50,000 lbs. The peak capture feature allows the highest force reading taken to be displayed with the push of a button. A zero/tare button is also standard on all models. The remote location of the load sensor minimizes the chance of damage to the electronic body of the gauge. The stainless steel construction of the sensor and the indicator makes them resistant to the occasional mishandling than can occur in the field. Optional handles are available for the load cell and gauge. See our web site for more information.
The DCT Instruments LC Digital Force Indicator is a portable, battery‑powered device for measuring compression forces. It features a stainless‑steel sensor and housing, peak‑force capture, zero/tare button, and selectable engineering units.
The manual provides specifications, ordering information, optional accessories such as NEMA‑4 construction and mounting rings, and contact details for technical support.
| Diameter | 3.7 in |
|---|---|
| Repeatability | 0.2 % |
| Full Scale Range | 5–50,000 lb |
| Display | 4½‑digit |
| Power | 9 V battery, 11–32 V DC, 110 VAC |
| Case Material | Stainless steel |
| Cell Material | Stainless steel |
| High & Low Capture | Standard |
| Update Speed | 3 samples/sec (selectable to 10 samples/sec) |
| Zero & Span Adjustment | Standard |
| Low Battery Indication | Standard |
It can measure up to 50,000 lb of compression force.
Press the peak capture button to show the highest force reading.
It can be powered by a 9 V battery, an optional 110 VAC AC adapter, or 11–32 V DC input.
Yes, an optional NEMA‑4 construction provides a water‑resistant enclosure.
