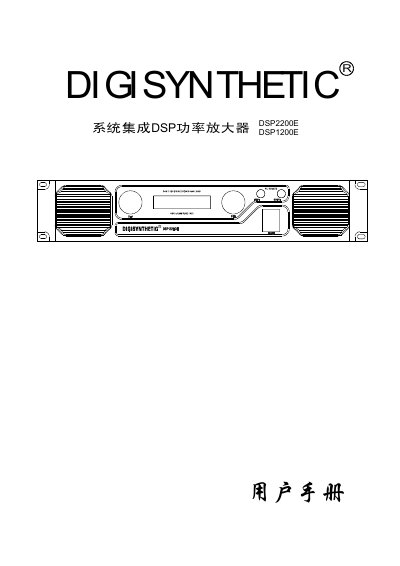

DSP DIGISYNTHETIC power amplifier DSP2200E DSP1200E is an integrated design with perfect electronic protection, network control function, digital signal generator function, digital audio (AES / EBU) input / output, matrix control function, computer serial port control and other features, which can meet the needs of users.
The manual provides comprehensive safety instructions, installation steps, and operating procedures for the DIGISYNTHETIC DSP2200E and DSP1200E integrated power amplifiers. It includes guidance on grounding, handling, environmental restrictions, and proper connection of power and signal cables.
Detailed sections describe the front and rear panel functions, bridge mode settings, PC software control, parameter adjustment (gain, EQ, delay, compression), and technical specifications such as output power, SNR, THD+N, and frequency response. This manual is written in Chinese.
| Signal‑to‑Noise Ratio | 90 dB |
|---|---|
| THD+N | 0.08 % @ 1 kHz |
| Frequency Response | 20 Hz – 20 kHz (+0, 0.5 dB) |
In the main interface click the corresponding buttons to adjust gain, equalization, delay, phase inversion, and compression; each parameter shows its current value.
