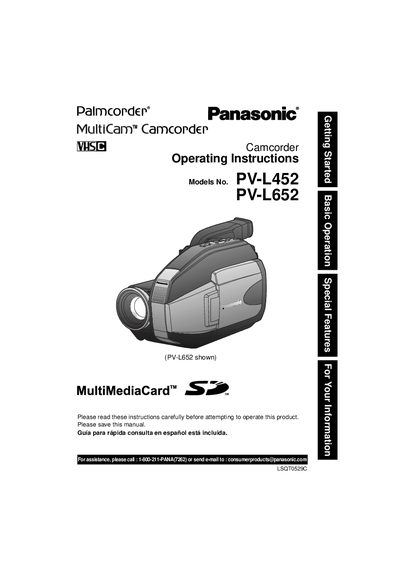

This is a user manual for Panasonic PV-L452 and PV-L652
This manual covers everything needed to set up and operate the Panasonic PV-L452 and PV-L652 compact VHS camcorders. It includes safety precautions, unpacking instructions, battery charging procedures, and detailed operating guides for recording, playback, and menu functions. The document also lists accessories, warranty information, and service contacts.
Technical specifications are provided for power requirements, video signal standards, lens details, display sizes, and physical dimensions. A Spanish quick‑use guide and an index are included for easy reference.
| Power Source (Camcorder) | DC 6 V |
|---|---|
| AC Adaptor Input | 110/120/220/240 V AC, 50/60 Hz |
| Battery Type | Nickel‑Cadmium rechargeable |
| Power Consumption (Camcorder) | 8.5 W (max 11.5 W) |
| Video Signal | EIA Standard (525 lines, 60 fields) NTSC |
| Lens | 20:1 zoom, F1.7 with auto iris |
| LCD Monitor Size (PV-L452) | 63.5 mm (2.5 in) |
| Weight (PV-L452) | 1.00 kg (2.20 lb) |
| Dimensions (PV-L452) | 106 × 125 × 190.5 mm |
The camcorder provides a digital zoom up to 750× (PV-L452) or 800× (PV-L652).
It uses a CR2025 clock battery (part number VSBW0004).
