This manual introduces the basic operation methods of KX-T7704, including making phone calls, receiving phone calls, and setting up.

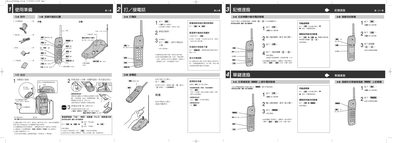

This manual covers the preparation steps, how to make and receive calls, special functions such as tone and pulse dialing, and important safety and installation guidelines for the Panasonic KX‑TC2006TWS wireless telephone. It also includes detailed specifications for both the base unit and the handset, as well as battery handling instructions.
The document provides troubleshooting tips, battery replacement procedures, and environmental requirements for optimal performance, ensuring users can safely install and operate the device in a variety of settings. This manual is written in Japanese.
| Base unit AC power | 110 V AC, 60 Hz |
|---|---|
| Operating frequency | 46 MHz – 49 MHz |
| Base unit dimensions (H × W × D) | ≈ 80 mm × 125 mm × 210 mm |
| Base unit weight | ≈ 300 g |
| Handset battery | 3.6 V, 300 mAh Ni‑Cd |
| Handset dimensions (H × W × D) | ≈ 278 mm × 54 mm × 40 mm |
| Handset weight | ≈ 190 g |
| Talk time (battery) | ≈ 5 hours |
| Standby time (battery) | ≈ 14 days |
| Charging time | ≈ 15 hours |
| Replacement battery part number | P‑P301 (KX‑A36A) |
The battery provides about 5 hours of talk time.
A full charge requires roughly 15 hours.
It uses a 3.6 V Ni‑Cd rechargeable battery, part number P‑P301 (KX‑A36A).
