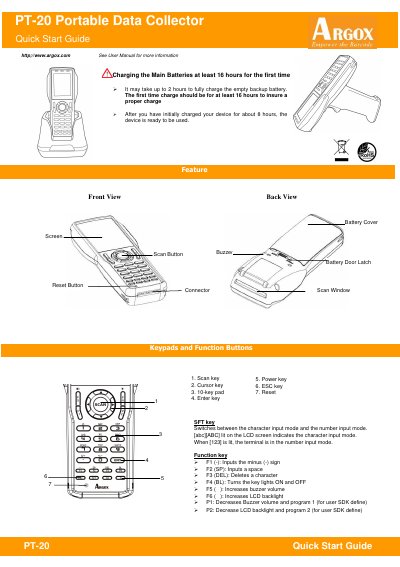

This is a quick start guide that introduces the basic functions and usage of the PT-20 portable data collector.
This Quick Start Guide provides essential information for getting the Argox PT-20 portable data collector up and running. It covers initial charging, keypad layout, mode switching, and basic usage steps.
The guide also includes details on battery replacement, charging indicators, and where to find additional support resources such as the full user manual and online support on Argox's website.
| Initial charge time (first use) | at least 16 hours |
|---|---|
| Full charge time (subsequent charges) | up to 2 hours |
| Battery type | Li‑Polymer battery pack |
| Charging indicator colors | Red = normal charge, Green = full charge |
| Cradle connection | Single slot Serial / USB cradle |
A full charge can take up to 2 hours, but the first charge should be at least 16 hours to ensure proper battery performance.
Make sure the terminal is turned off before removing or installing the battery.
