7ZXR GA-7ZXR Motherboard Installation Guide

FCC Compliance Statement

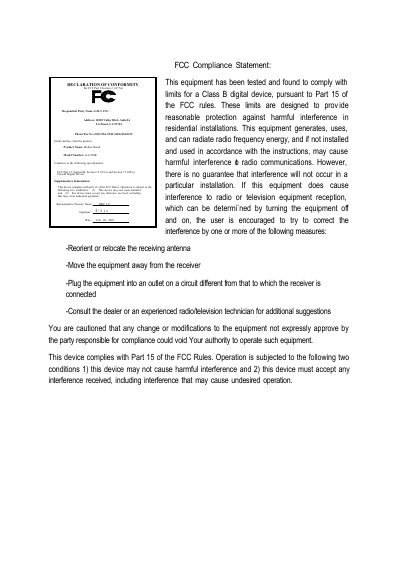

7ZXR GA-7ZXR Motherboard Installation Guide - cover page
Brand
7ZXR
Category
Motherboard
Document type
Installation Guide
Language
English
Pages
120
File format
PDF
File size
2.7 MB
Published
22 March, 2012
Updated
30 September, 2023
MD5 checksum
CCDF4F00929EE30F1AF64B34E152C5F5
PDF
7ZXR GA-7ZXR Motherboard Installation Guide PDF

About this manual

This installation guide walks users through unpacking, hardware setup, BIOS configuration, and BIOS update procedures for the 7ZXR GA‑7ZXR motherboard. It includes detailed diagrams, accessory lists, and troubleshooting tips.

The guide also outlines the board’s key features such as Dual BIOS, RAID support, four‑speaker/SPDIF audio, and USB connectivity, providing performance test results and chipset block diagrams for the Apollo KT133A chipset.

What's inside

  • Version Revision Summary
  • Accessories List
  • Feature Summary
  • Hardware Setup
  • Performance Test and Chipset Diagram
  • Dual BIOS
  • Four Speaker & SPDIF
  • RAID
  • BIOS Settings

Specifications

Form factorATX 30.5 cm x 24.4 cm
CPU socketAMD Athlon (K7) Socket A
Supported CPU speed60 MHz ~ 1.33 GHz
ChipsetApollo KT133A (VT8363A controller)
Memory slots3 × 168‑pin DIMM, up to 1.5 GB
Maximum memory1.5 GB
AGP slot1 × AGP 4X (1.5 V‑1.7 V)
PCI slots6 × 32‑bit PCI 2.2
USB ports4
Audio codecCreative CT5880 AC'97

Frequently asked questions

How many USB ports does the 7ZXR GA‑7ZXR motherboard provide?

The board includes four USB ports.

What type of audio codec is integrated on the board?

It uses a Creative CT5880 AC'97 audio codec.

Does the motherboard support RAID, and if so which levels?

Yes, it supports RAID 0 (striping) and RAID 1 (mirroring).

How many DIMM slots are available and what is the maximum memory capacity?

There are three DIMM slots with a maximum supported memory of 1.5 GB.
