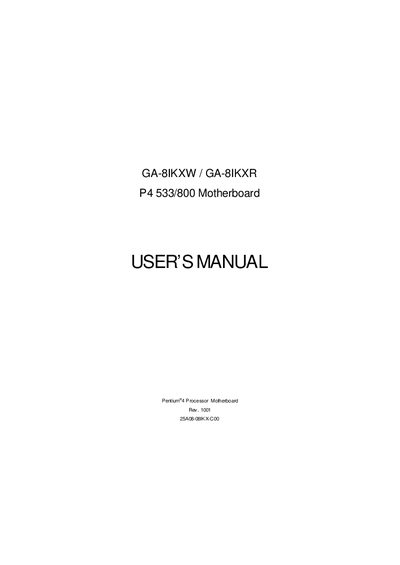

P4 533/800 GA-8IKXW GA-8IKXR Motherboar user manual

This is the user manual of GA-8IKXW / GA-8IKXR P4 533/800 motherboard, which introduces the features of the motherboard, hardware installation, BIOS setup, driver installation, etc.

Brand: P4
Category: Other Computer Accessories
Document type: User Manual
Language: English
Pages: 80
File format: PDF
File size: 2.8 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: 8B96E2E1262E1A1EB296907264BB819D
PDF: P4 533/800 GA-8IKXW GA-8IKXR Motherboar user manual PDF

About this manual

This manual provides step‑by‑step instructions for installing the GA‑8IKXW/GA‑8IKXR motherboard, including CPU, memory, expansion cards, and power connections. It also details BIOS configuration, hardware monitoring, and RAID setup.

Additional sections cover driver installation for Intel, Realtek, and Promise components, as well as a technical reference with block diagrams and an appendix of acronyms.

What's inside

Introduction
Features Summary
Motherboard Layout
Hardware Installation Process
BIOS Setup
Technical Reference
Driver Installation
Serial ATA RAID Creation Procedures
Appendix – Acronyms

Specifications

Form Factor	ATX 30.6 cm x 24.4 cm
CPU Socket	Socket 478 for Intel Pentium 4 processors
Chipset	Intel 875P with ICH5R I/O Controller Hub
USB Ports	6 USB 2.0/1.1 ports (2 rear, 4 front)

Frequently asked questions

How many USB ports are available on the GA‑8IKXW/GA‑8IKXR?

There are six USB 2.0/1.1 ports – two on the rear panel and four on the front panel.

Does the motherboard include RAID functionality?

Yes, it has an on‑board Promise PDC20276 RAID controller that supports RAID 0 (striping) and RAID 1 (mirroring).

Download PDF (2.8 MB)
