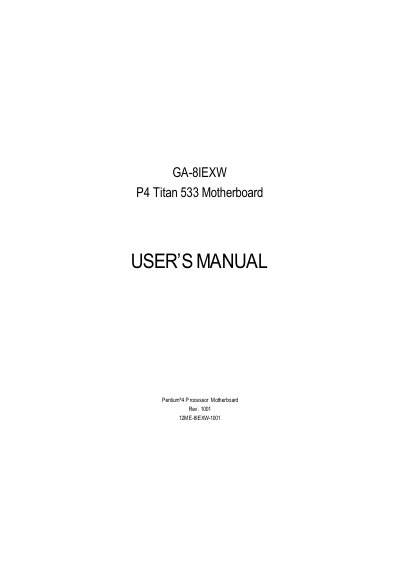

P4 Titan 533 GA-8IEXW Motherboard user manual

This is the user manual of GA-8IEXW P4 Titan 533 motherboard. It mainly introduces the features of the motherboard, as well as hardware installation and BIOS settings.

Brand: P4
Document type: User Manual
Language: English
Pages: 62
File format: PDF
File size: 1.6 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: 89C456CAD7FEA4DC000E8D5423069001
PDF: P4 Titan 533 GA-8IEXW Motherboard user manual PDF

About this manual

This manual covers the GA-8IEXW ATX motherboard designed for Intel Pentium 4 processors. It includes safety precautions, a detailed hardware installation guide, and BIOS setup instructions.

Additional sections provide a block diagram, technical reference data, and appendices with driver installation and acronym definitions.

What's inside

Introduction
Features Summary
Motherboard Layout
Hardware Installation Process
BIOS Setup
Technical Reference
Appendix

Specifications

Form factor	ATX 30.6 cm x 24.4 cm
CPU socket	Socket 478 for Intel Pentium 4
Chipset	Intel 845E (HOST/AGP/Controller) with ICH4 I/O Controller Hub
AGP slot	1 AGP 4X (1.5 V only)
PCI slots	5 PCI slots (33 MHz, PCI 2.2 compliant)
On‑board audio	Realtek ALC650 CODEC
On‑board LAN	Intel 82550PM
USB ports	6 USB 2.0/1.1 ports (2 rear, 4 front)

Frequently asked questions

What type of CPU socket does the GA-8IEXW motherboard use?

It uses a Socket 478 designed for Intel Pentium 4 processors.

Which audio codec is integrated on the GA-8IEXW motherboard?

The motherboard includes a Realtek ALC650 audio codec.

What LAN controller is built into the GA-8IEXW motherboard?

It features an Intel 82550PM Ethernet controller.
